KT Ebike 22A 9 Mosfets Controller 36V 48V 500W 750W With LCD LED Display Ebike Parts Accessies For Electric Bike Conversion Kit

  Attention

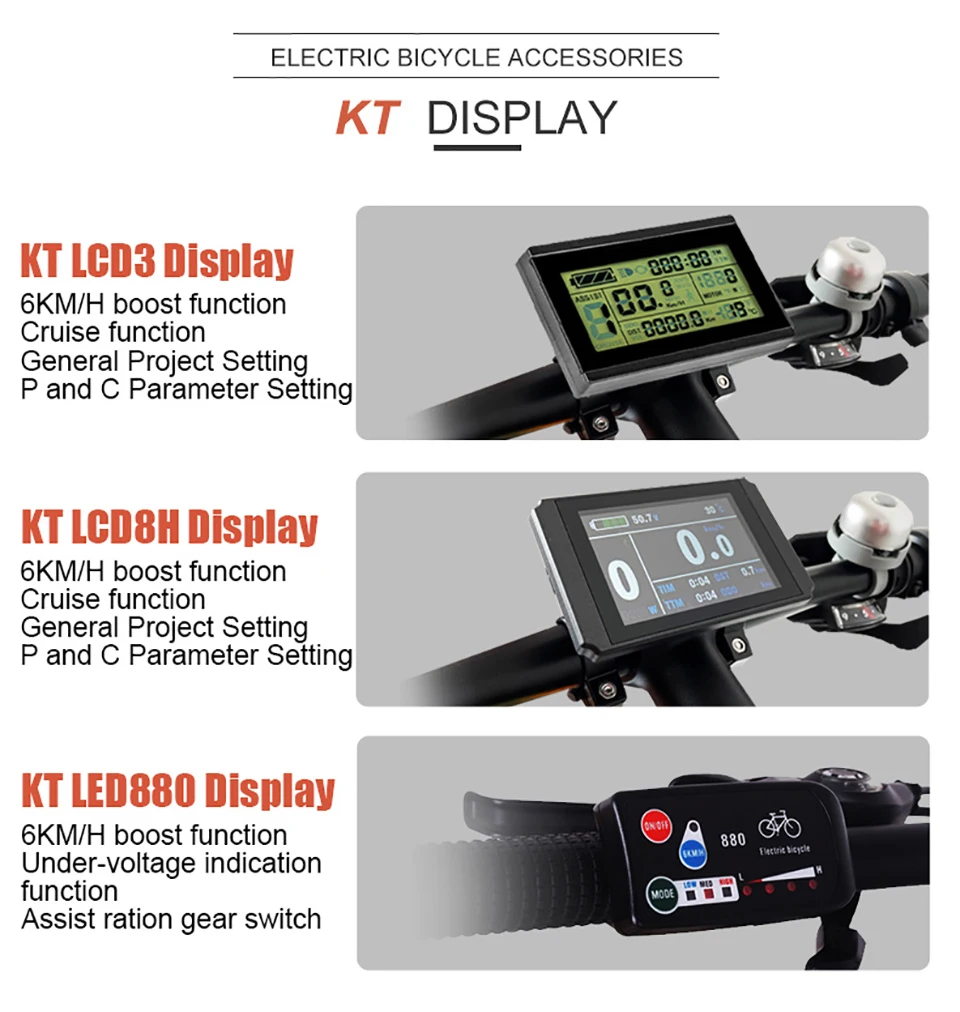

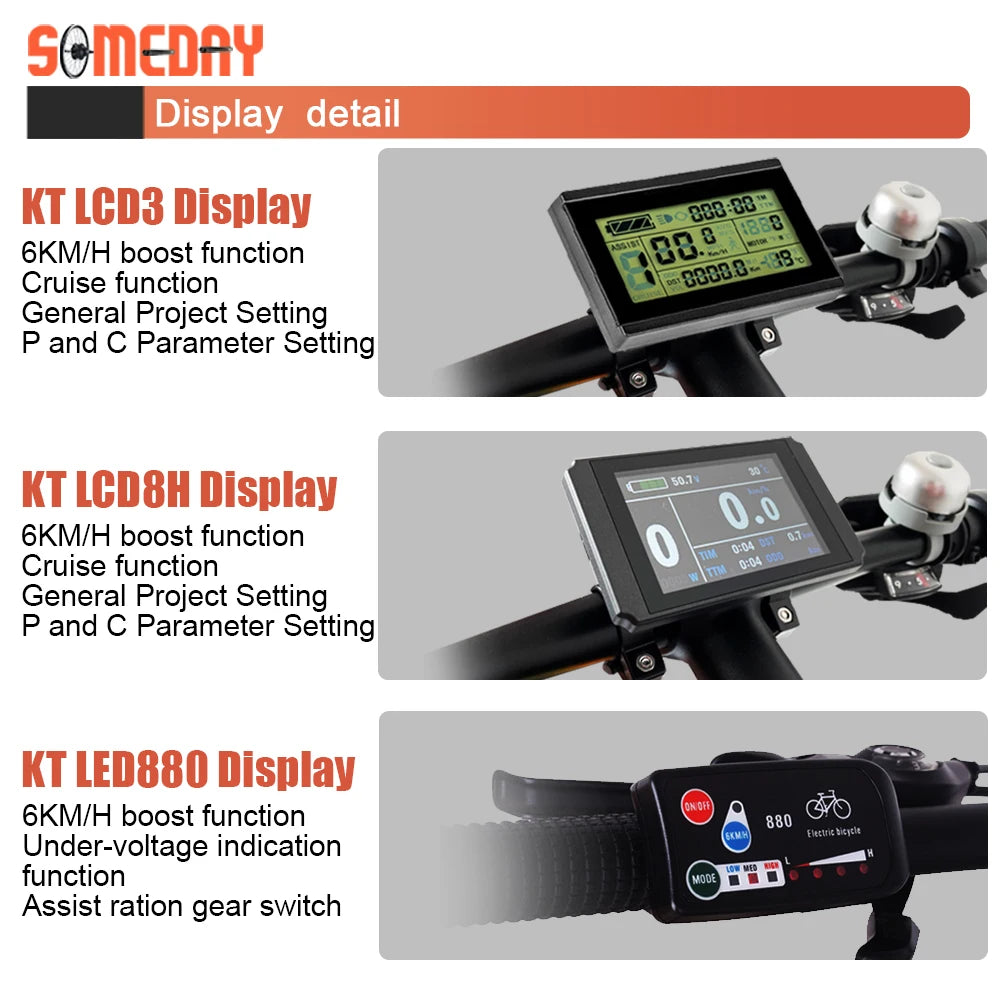

●1.KT controller only compatible with KT display .Same communication protocol.We have given pictures to teach you how to distinguish.Please check before place the order .

●2.Please contact me if you are not sure which is right for you or have further questions by Aliexpress message.

●3.The cable length is manually measured, there may be some difference, please understand.

●4.This ebike controller is not suitable for scooters.

●5.Work voltage:36V or 48V Universal (support both voltage)

●6.Suitable for Brushless Gear Hub Motor 500W

●7.This one is Square Wave Controller.

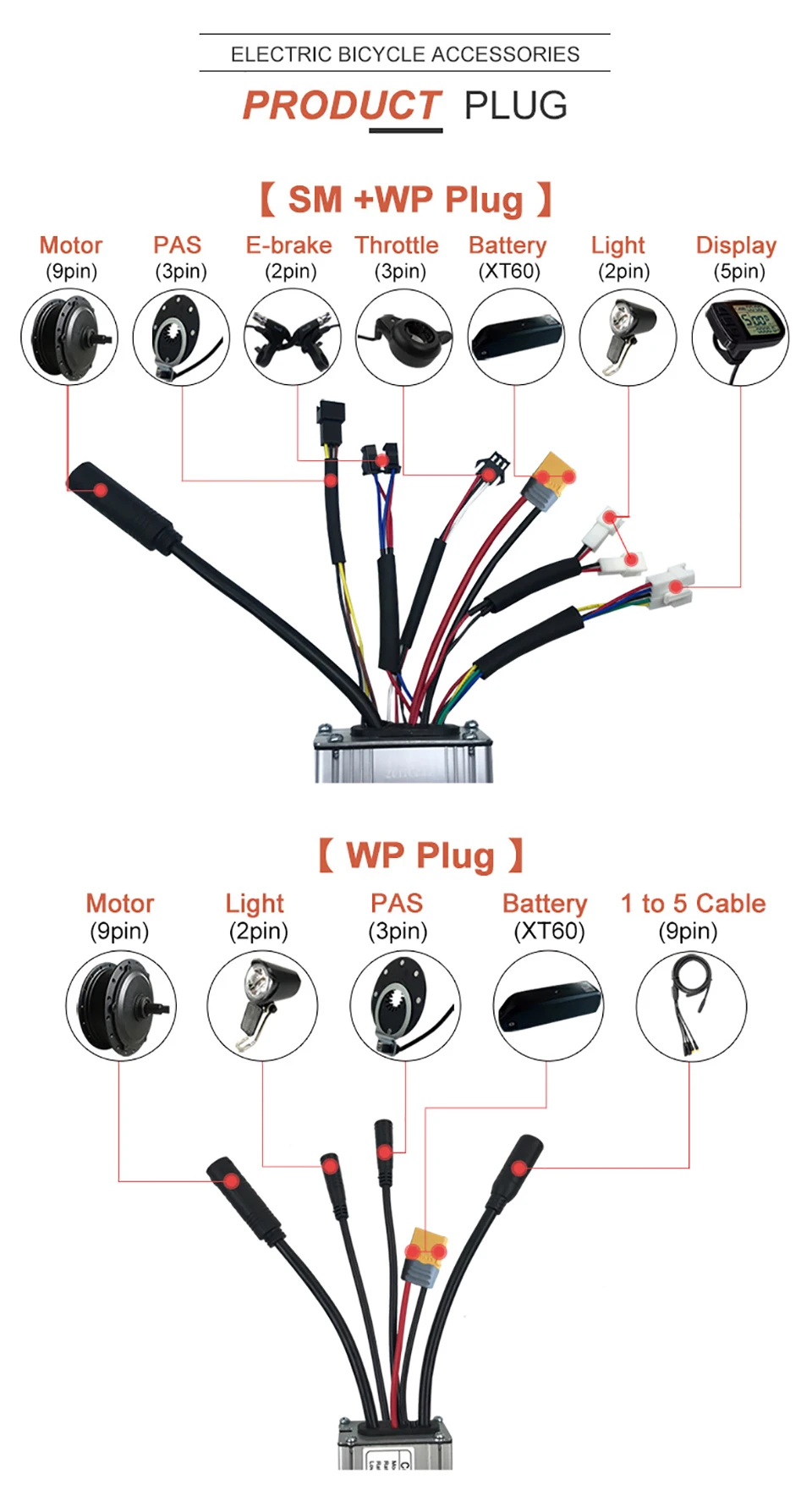

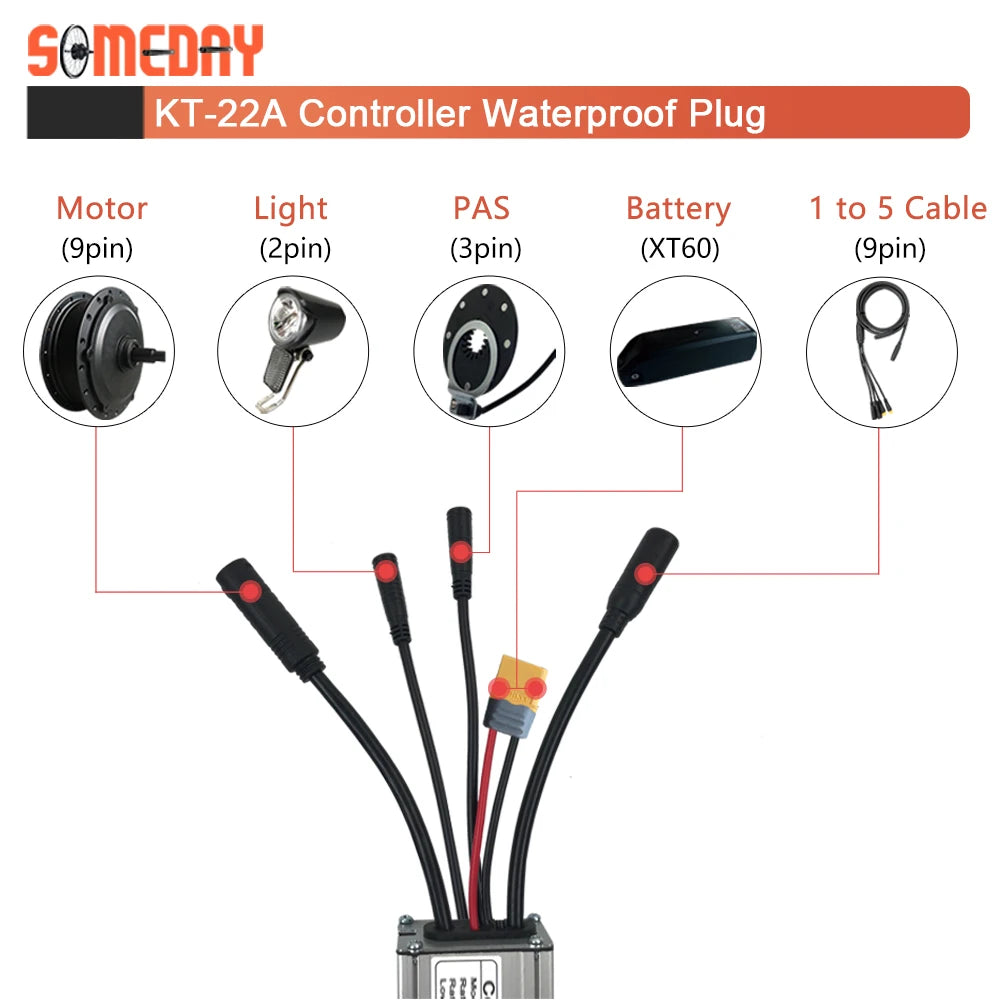

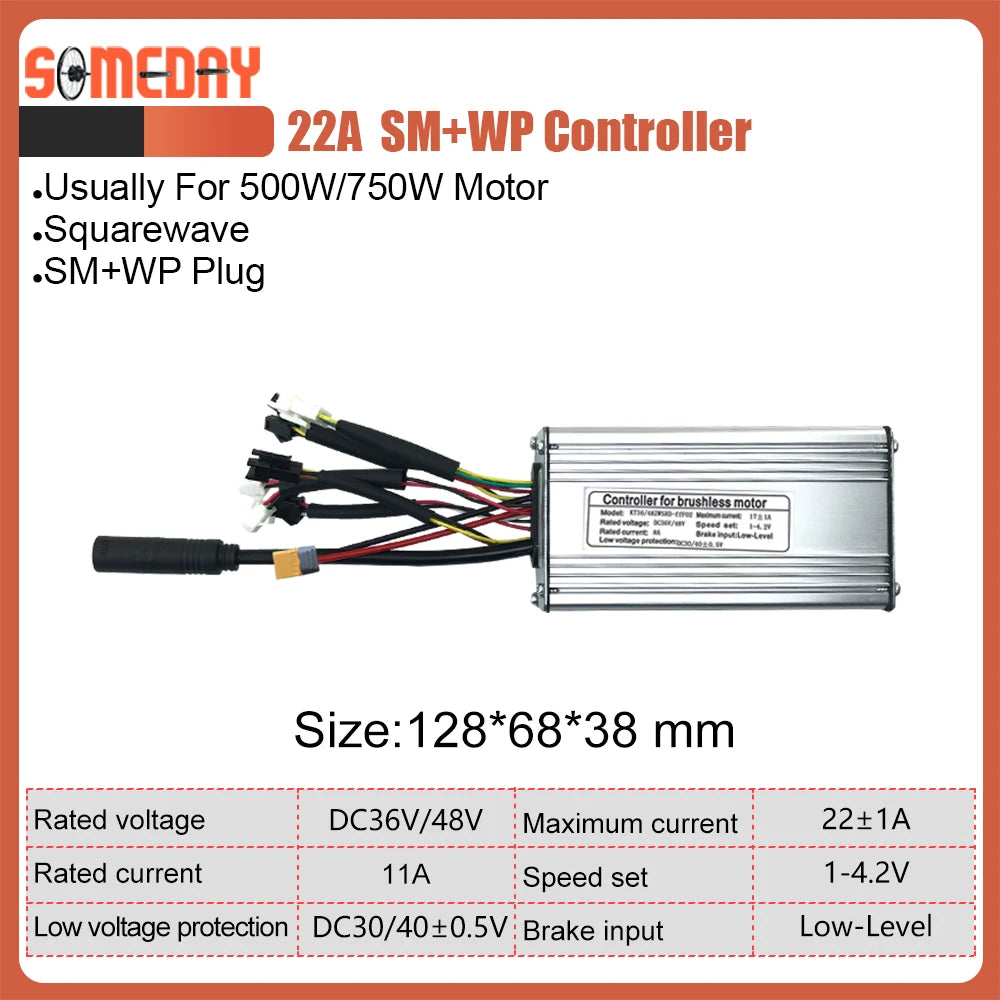

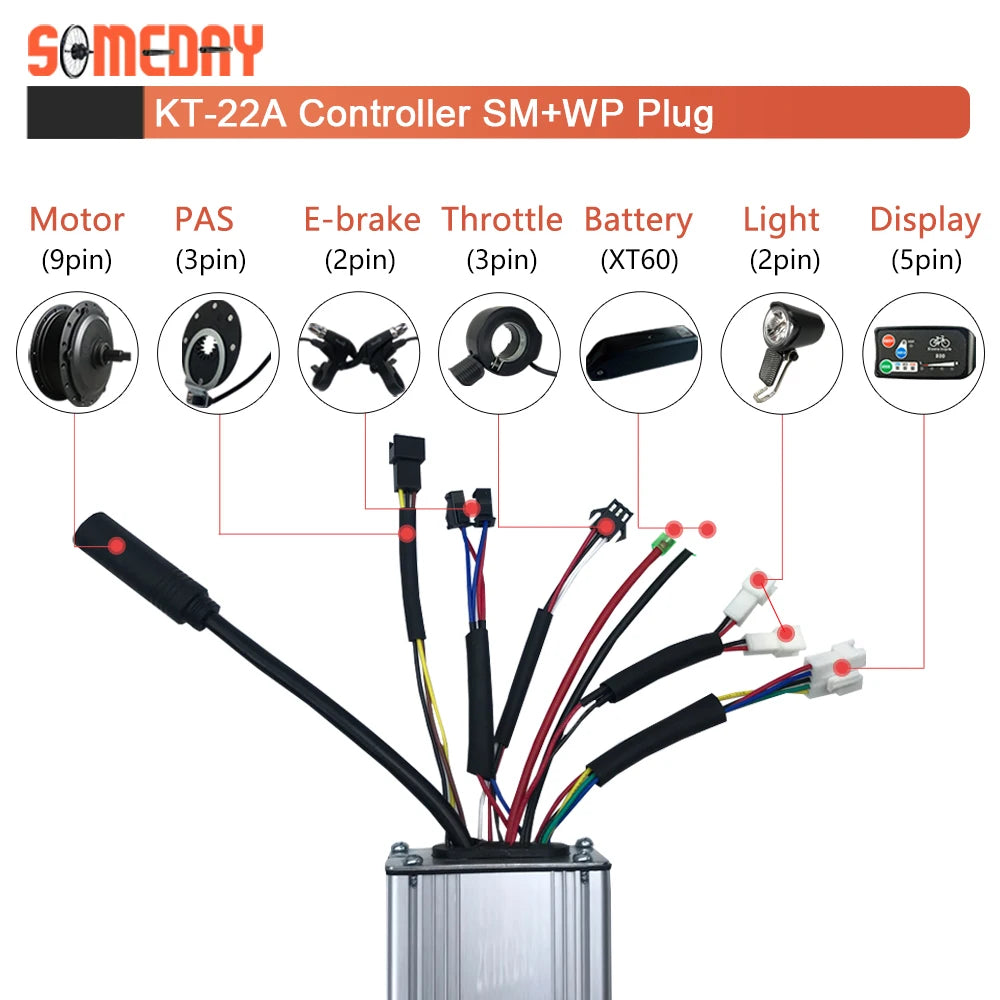

  36/48V22A Controller SM+WP/WP Plug

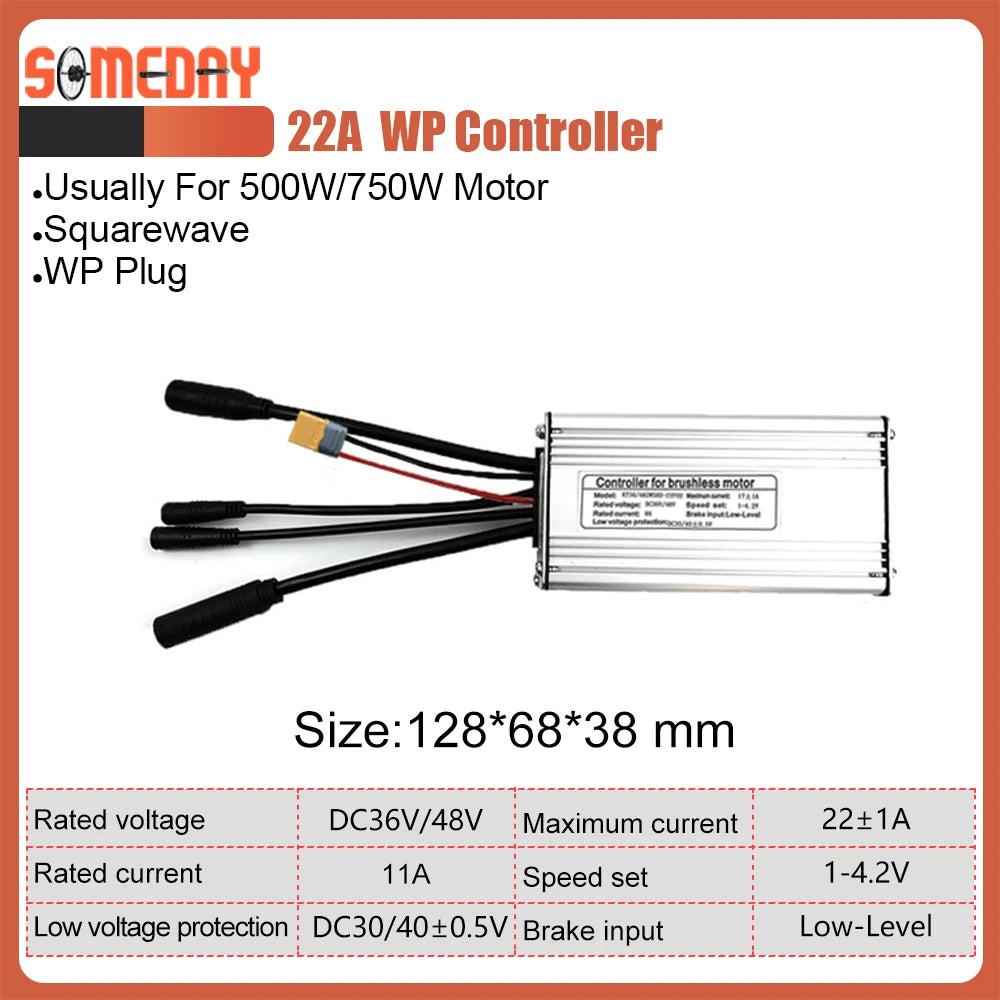

   ●A:WP+SM/WP Squarewave

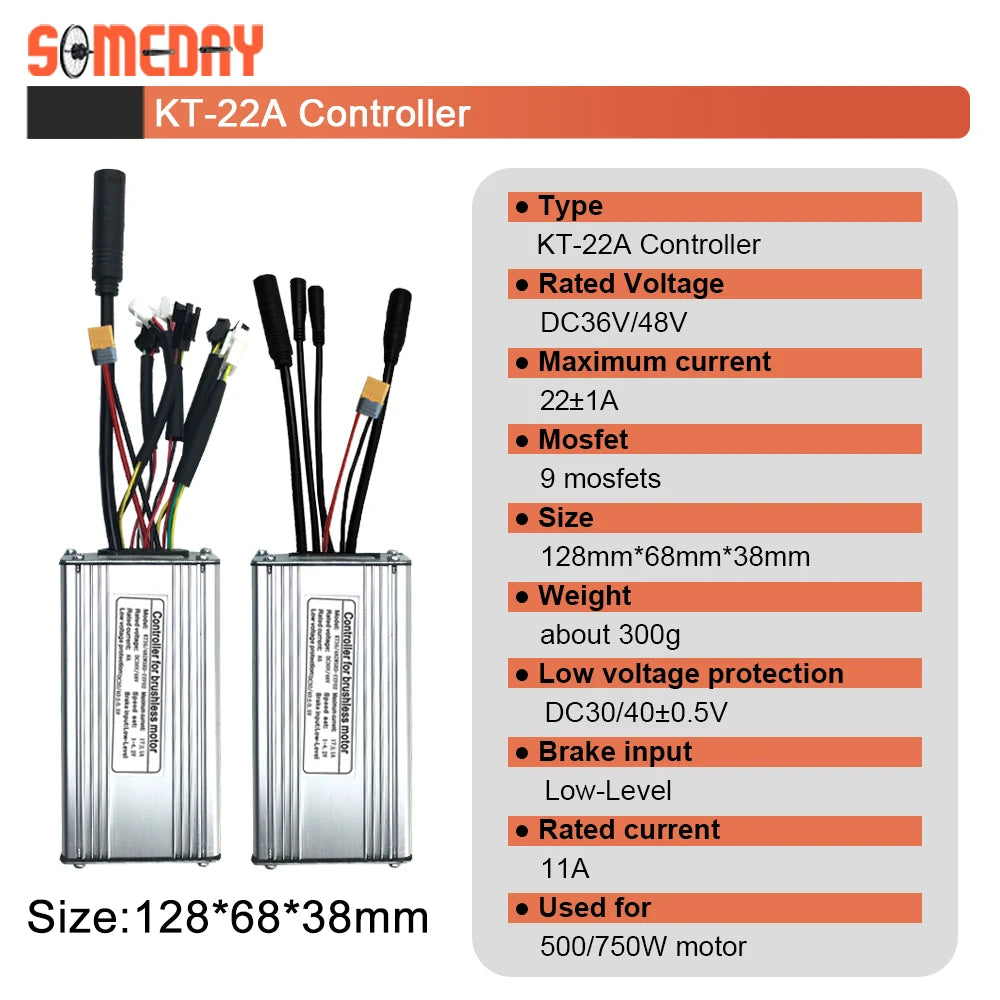

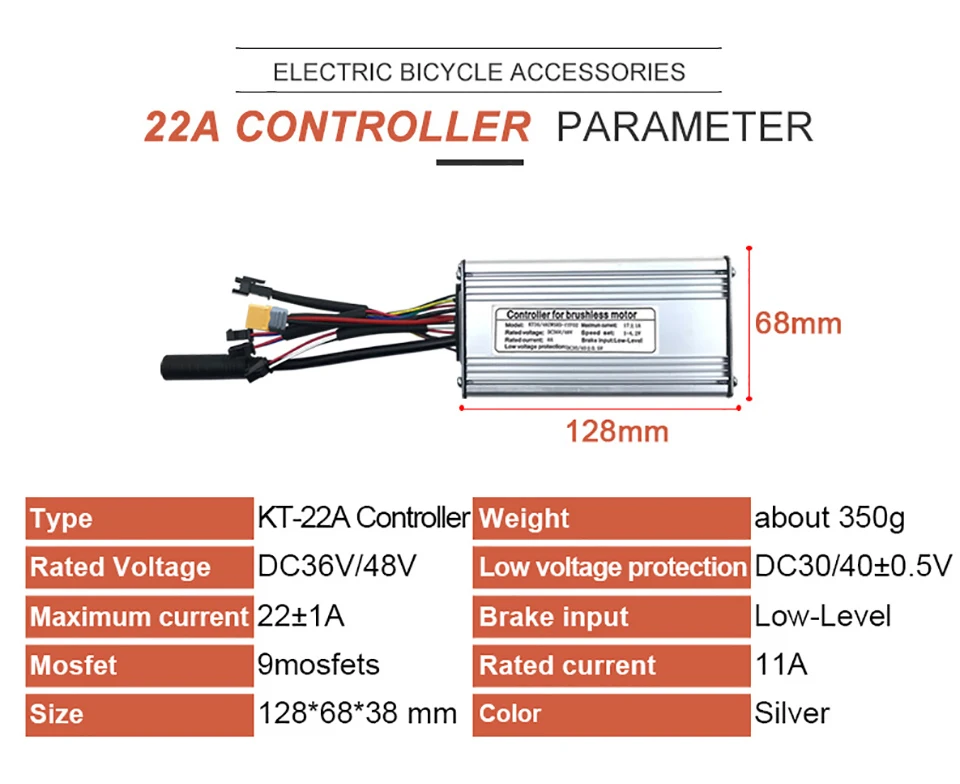

   ●Brand:KT

   ●Color:silver

   ●Dimesion:128 * 68 * 38 mm

   ●Mosfet:9 mosfets

   ●Maximum current:22±1A

   ●Rated current:11A

   ●Rated voltage:DC36V/48V

   ●Speed set:1-4.2V

   ●Brake input :Low-Level

   ●Low voltage protection:DC30/40±0.5V

   ●Cable length:all about 10-13cm

   ●Weight:350g
