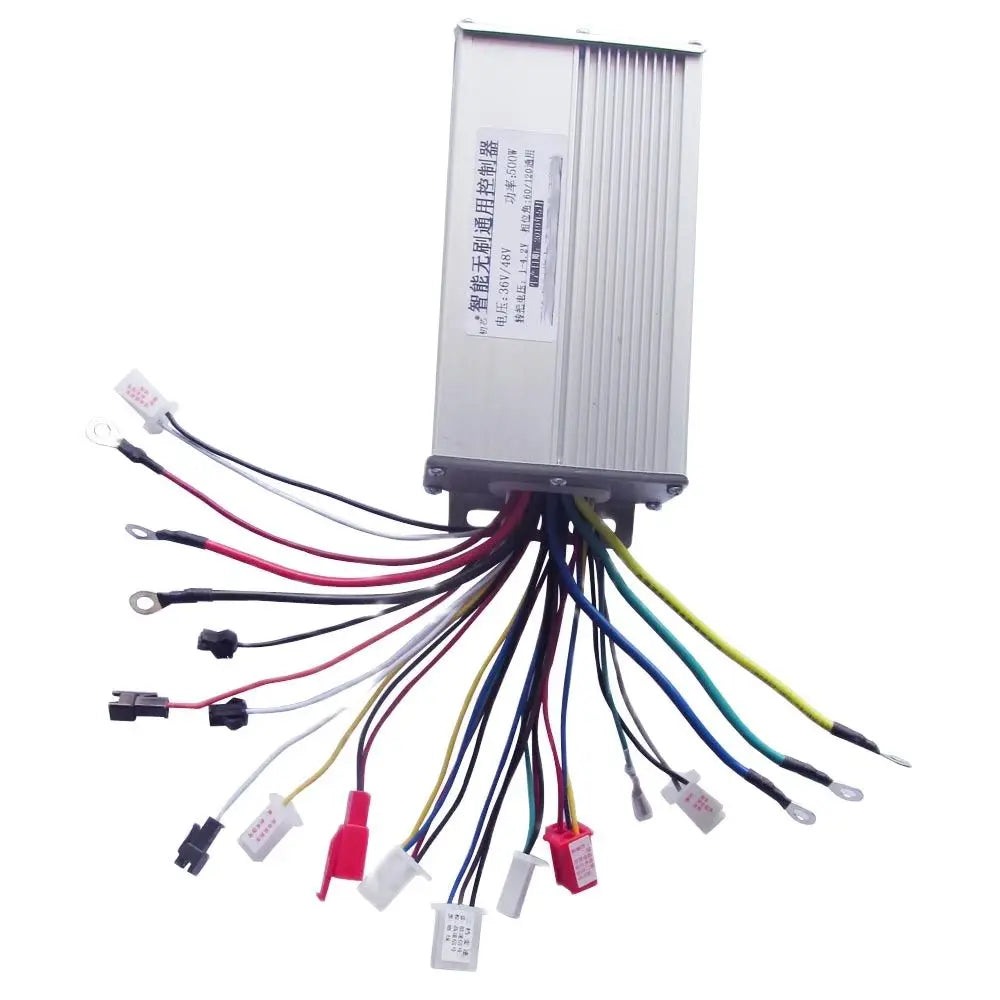

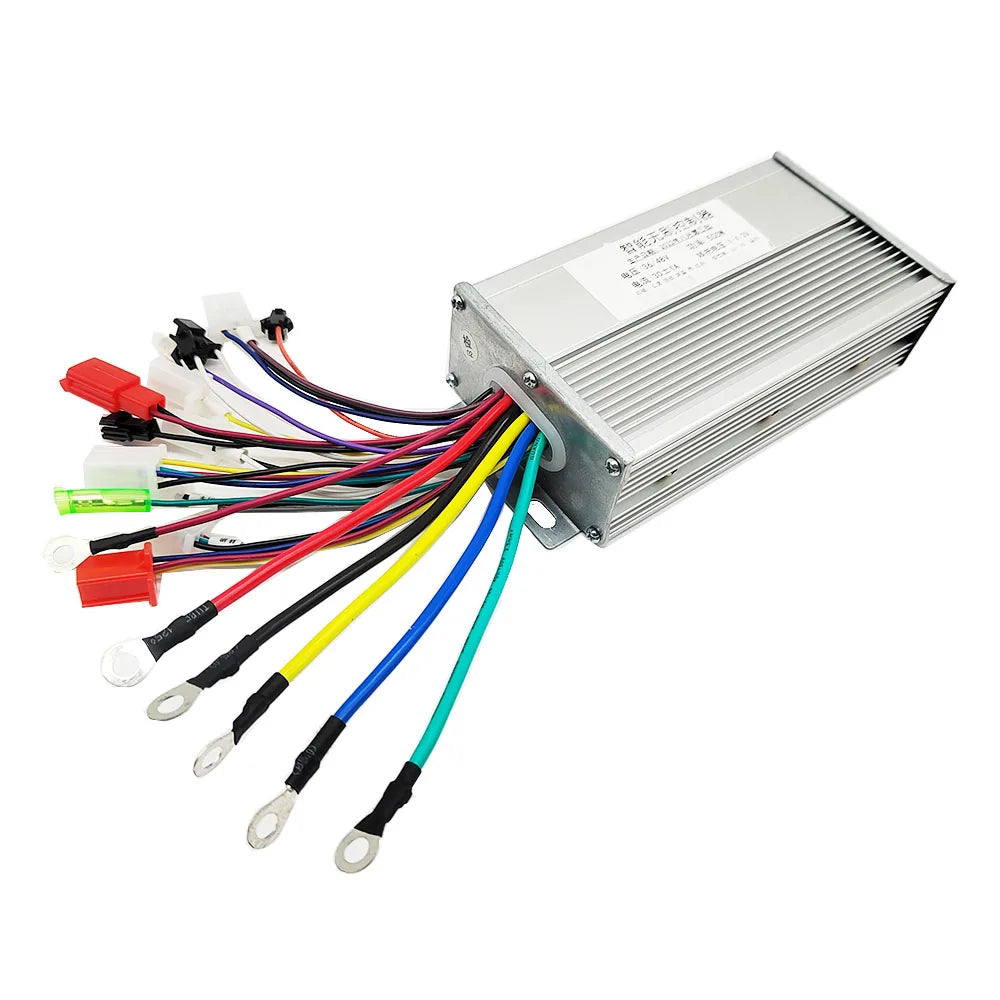

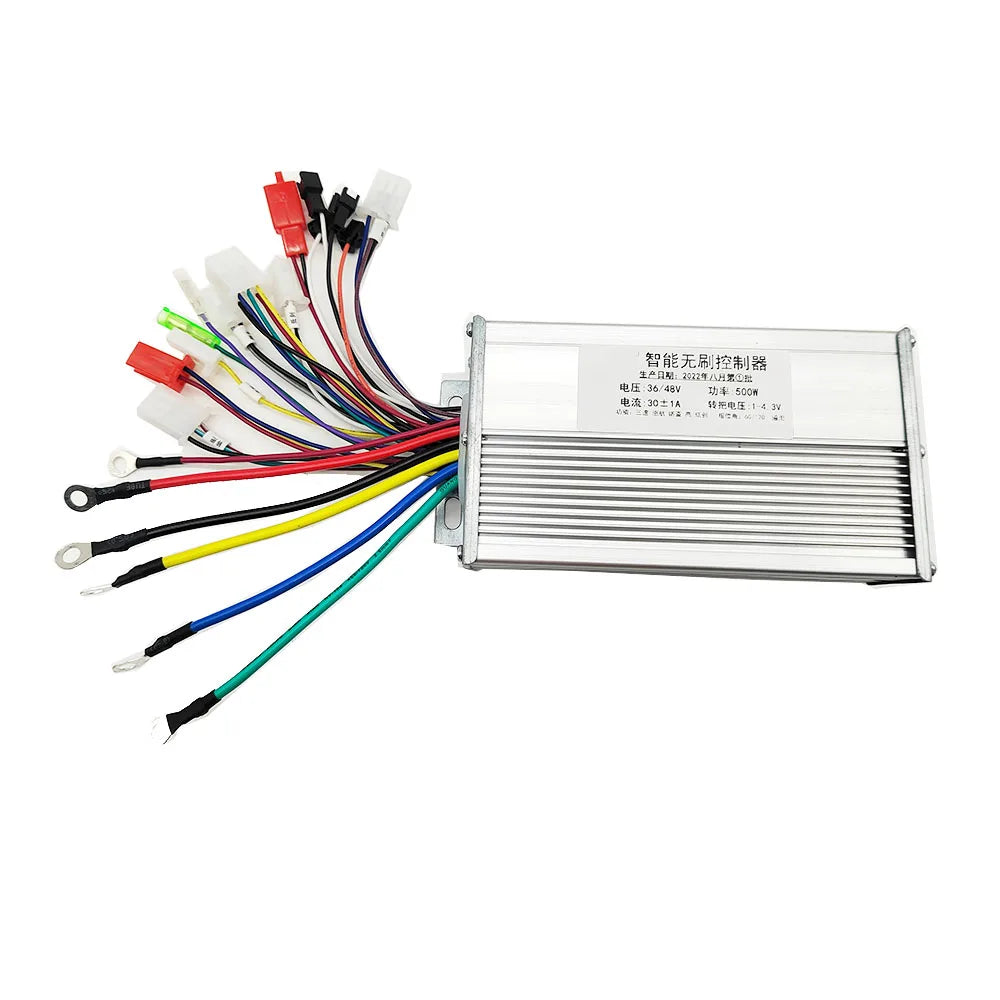

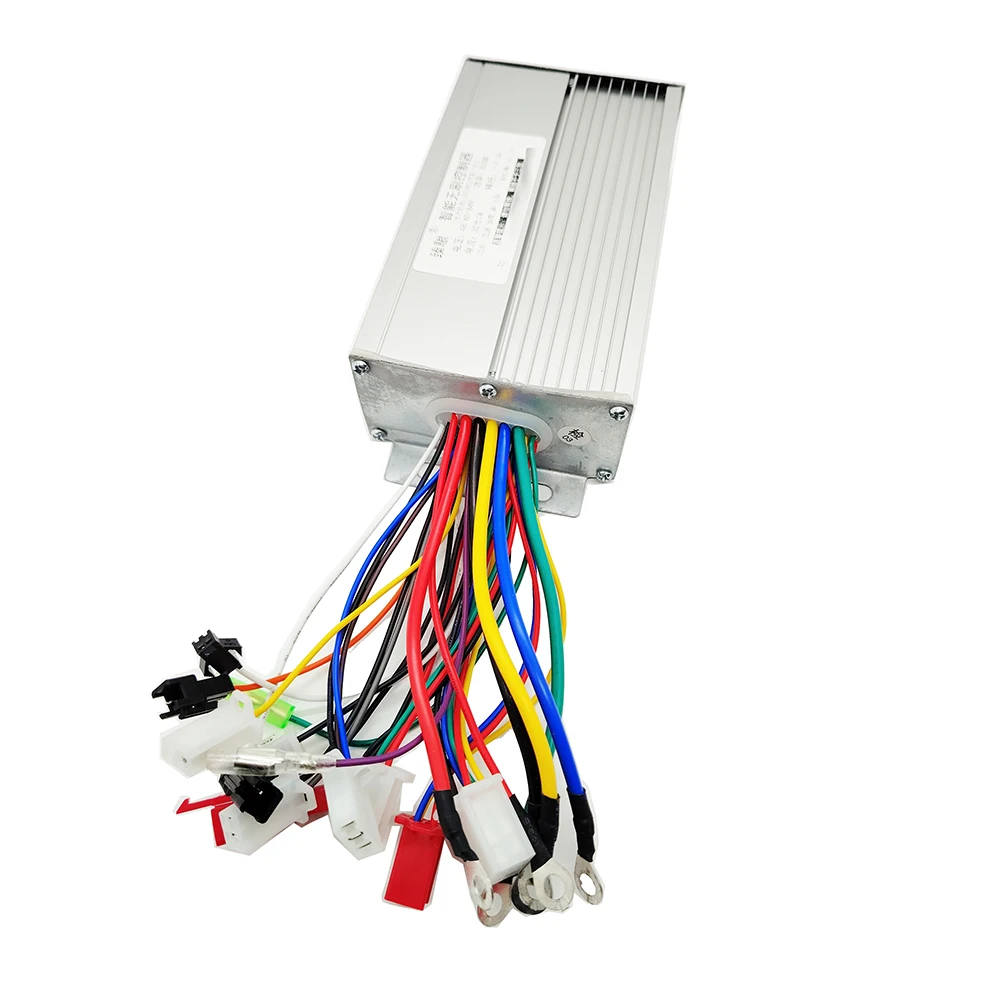

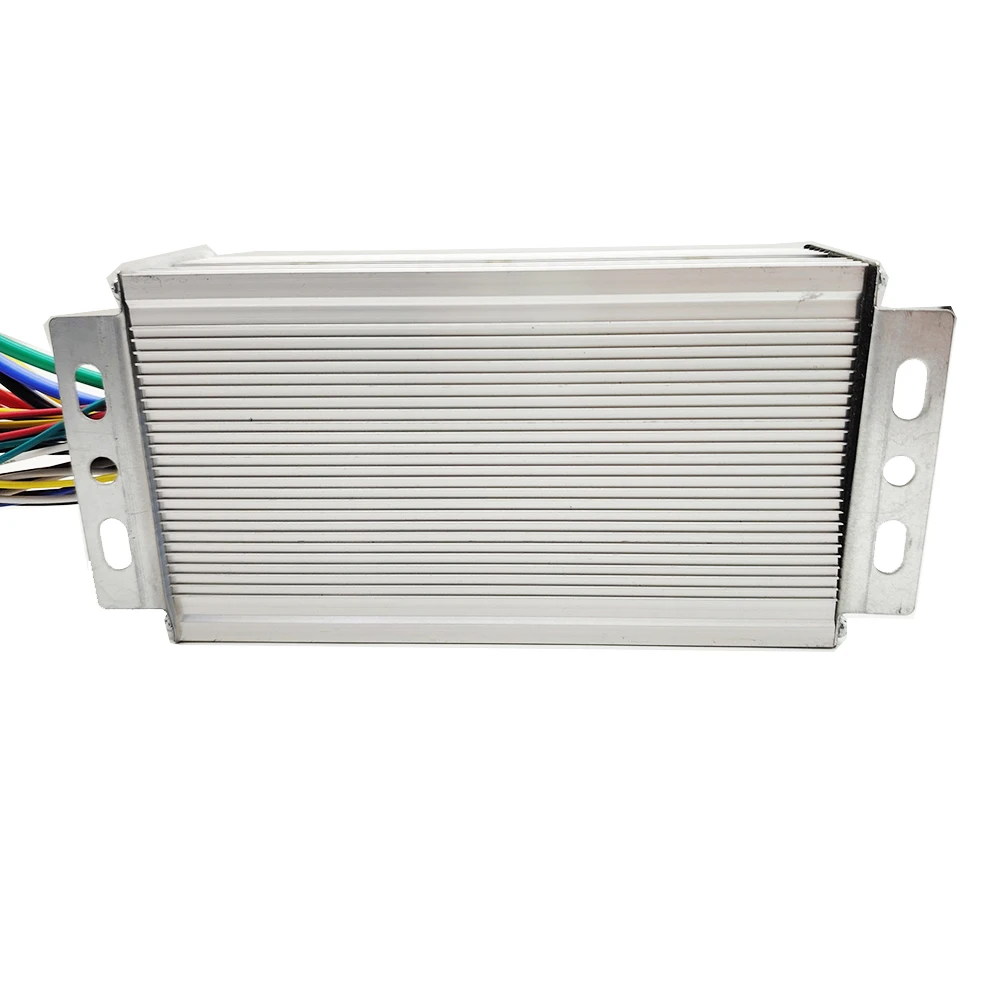

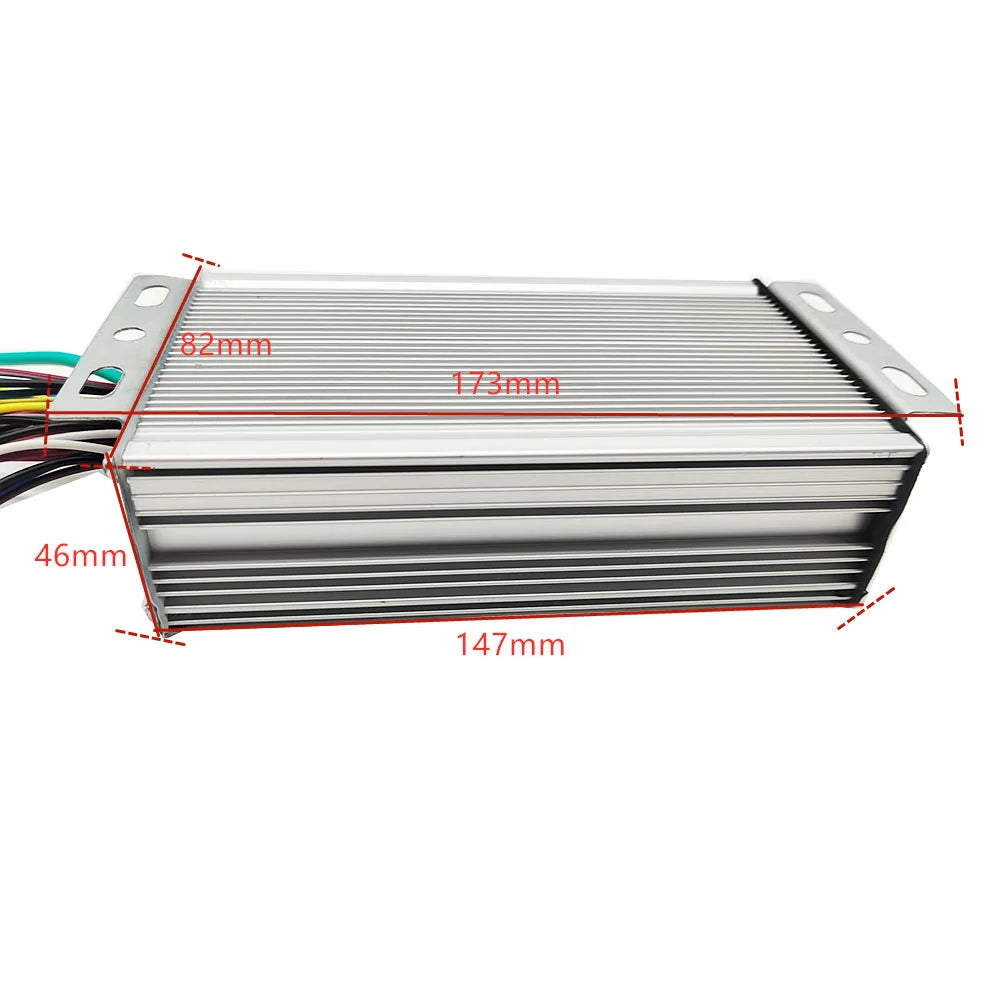

500W BLDC Brushless Square Wave E-Bike Motor Controller 36V 48V 60V for Electric Bicycle, Scooter & Trike

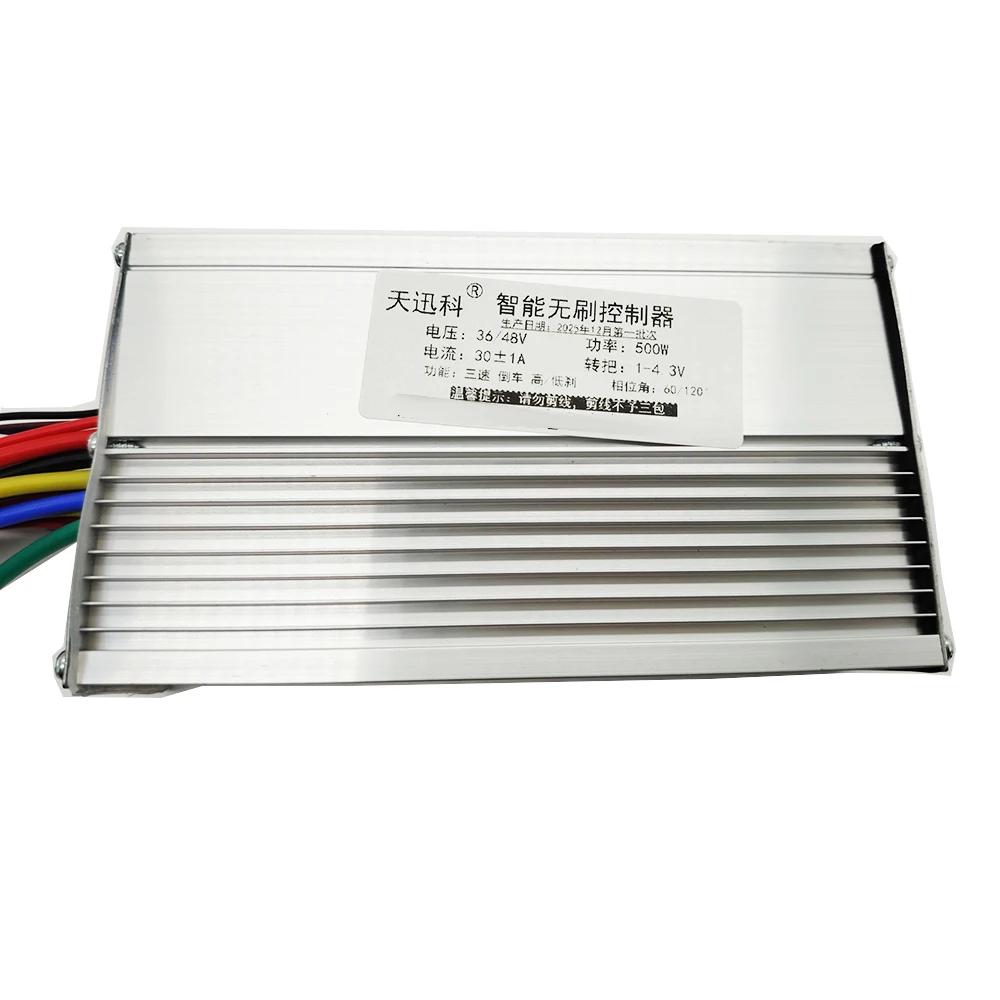

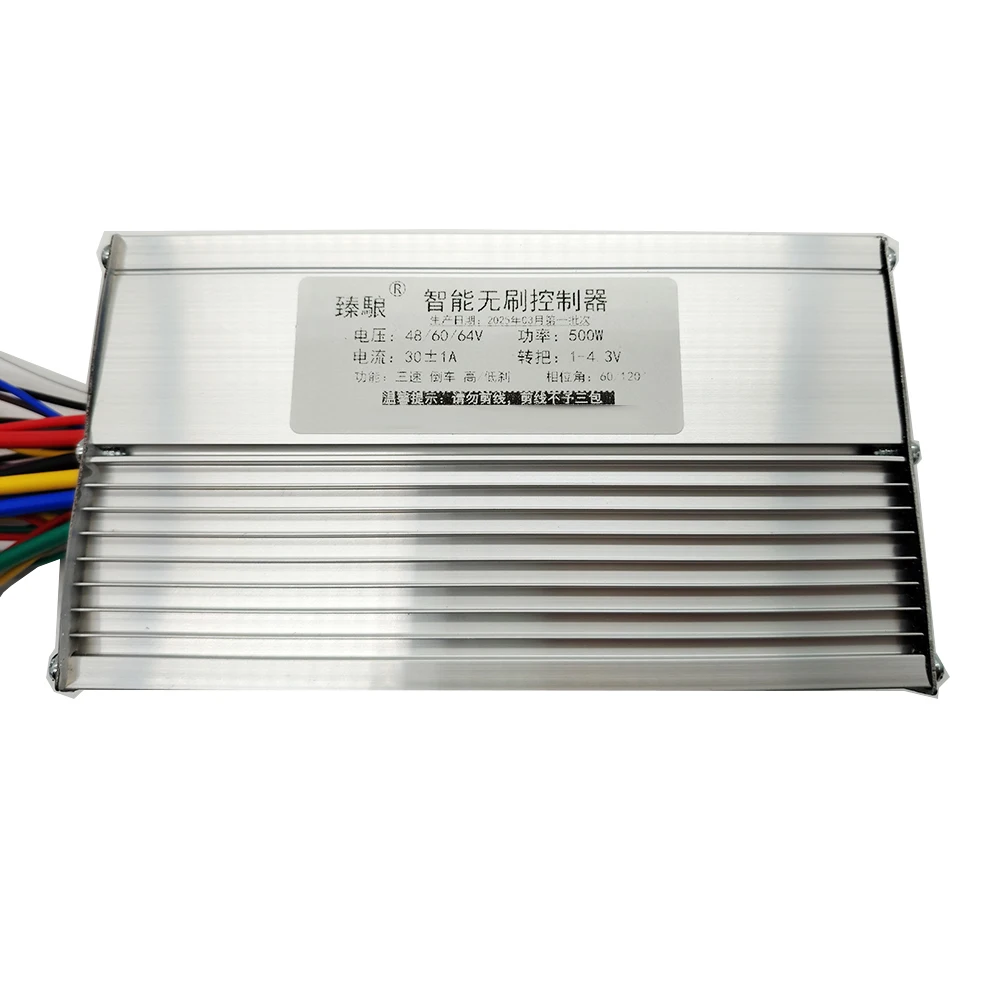

36V-48V 48-64V 500W square wave brushless controller

Rated Voltage: 36V-48V,48V-64V

Low Voltage : 31V/42V±0.5V

Rated Power: 500W

Limit Current: 30A

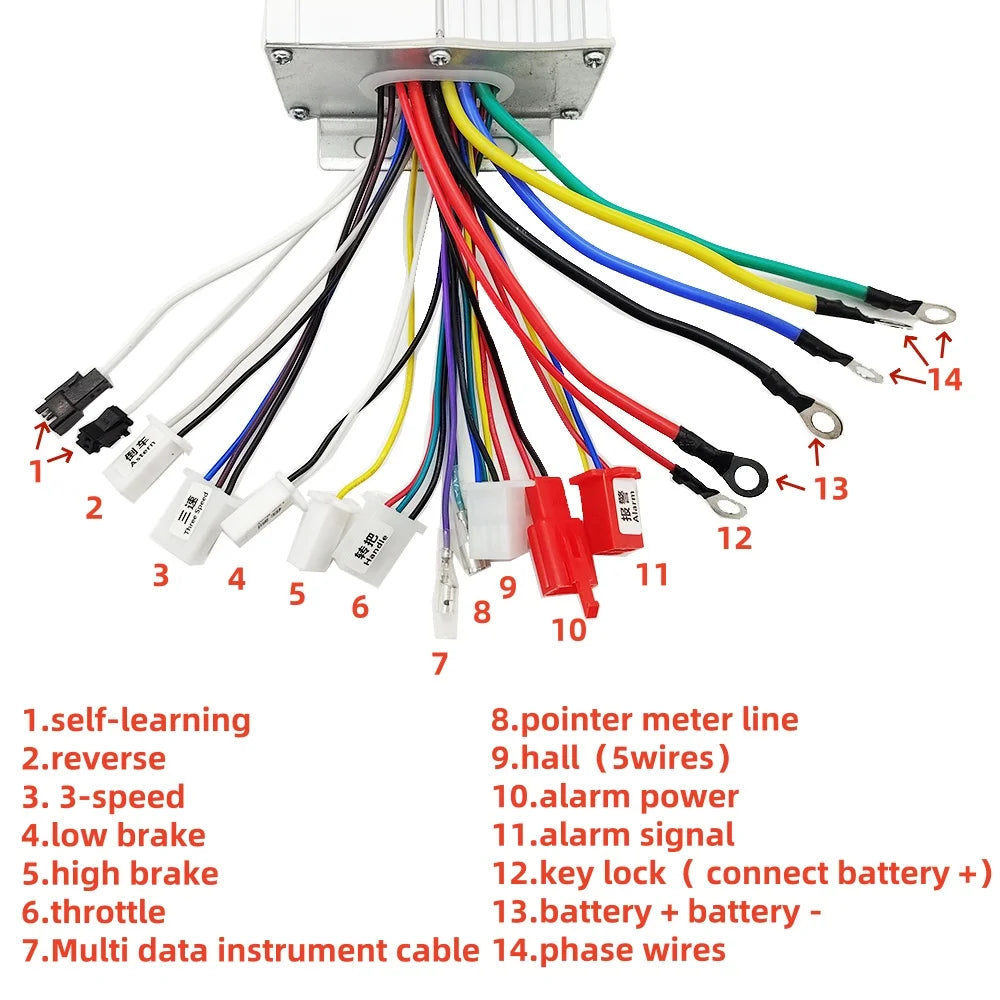

36V-48V 500W controller function:

1.self-learning

2.reverse

3. 3-speed

4.low brake

5.high brake

6.throttle

7.Multi data instrument cable

8.pointer meter line

9.hall（5wires）

10.alarm power

11.alarm signal

12.key lock（ connect battery +）

13.battery + battery -

14.phase wires

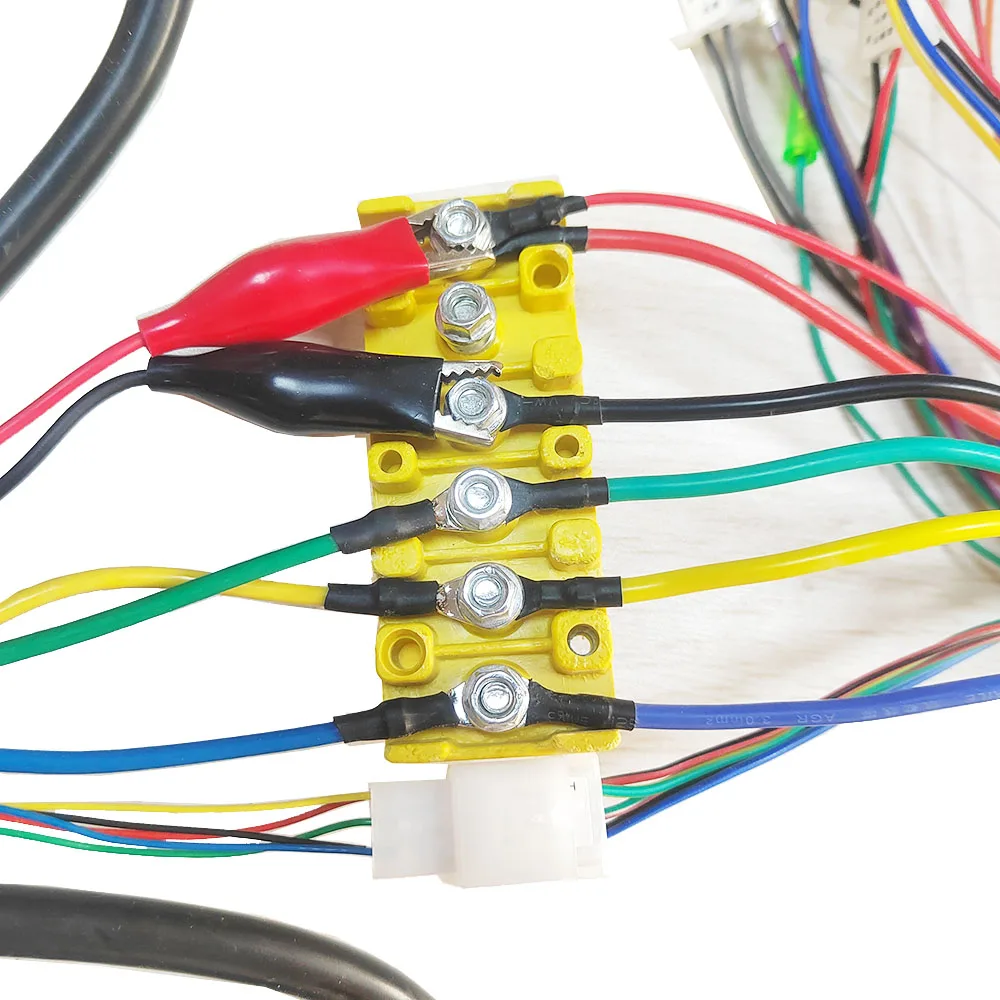

how to connect？

1.connect the phase wires (color to color connection）

2. connect the hall line(color to color connection，if motor without hall line, don't need connect)

3. connect the battery line(2 red wires :battery + , black:battery-)

4. connect the throttle line（color to color connection）

5.off power,let two self-learning lines connect together,open power,the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line.then let two self-learning line connect together again，

if wheel forward ,Separate the self-learning line.)

The self-learning step is to enable the controller to match the motor phase,

adjust the direction of motor operation, and also adapt to the battery voltage

note：when use throttle control speed,two self-learning lines must separate.

6.other functions can be connected as needed.
