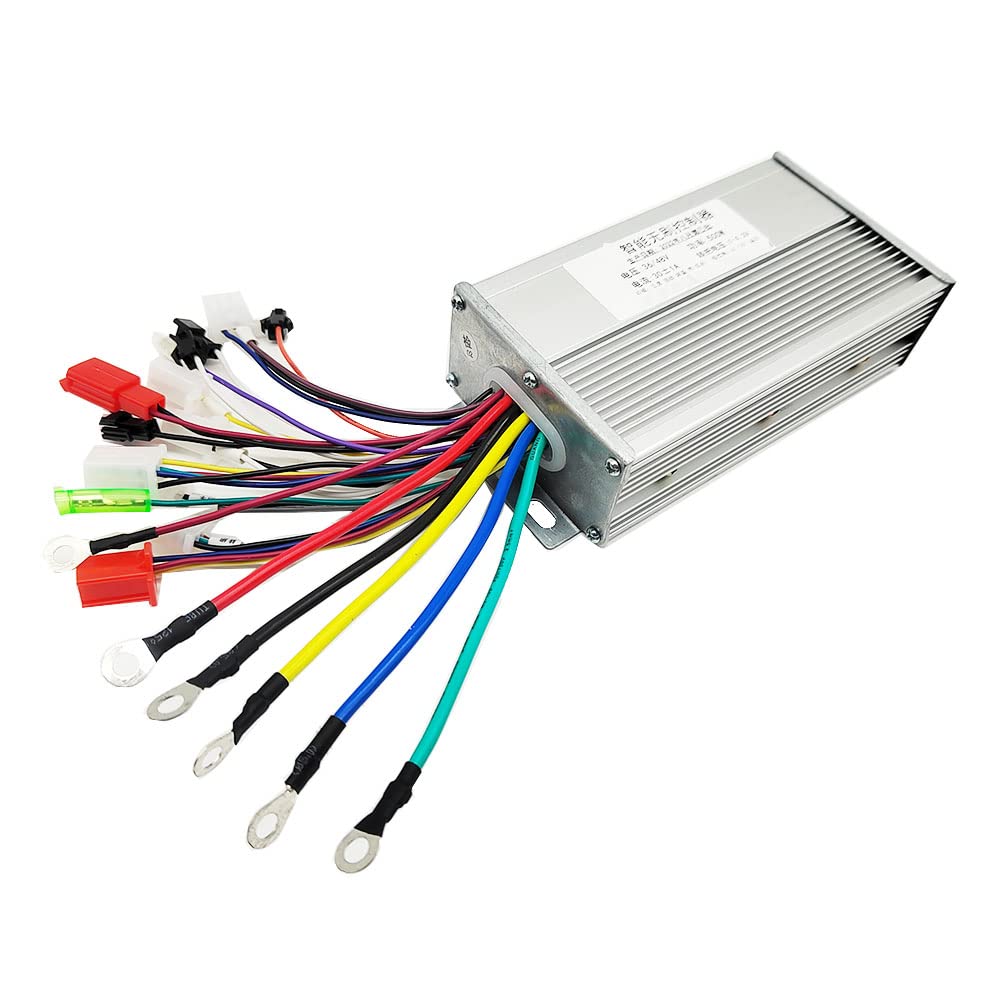

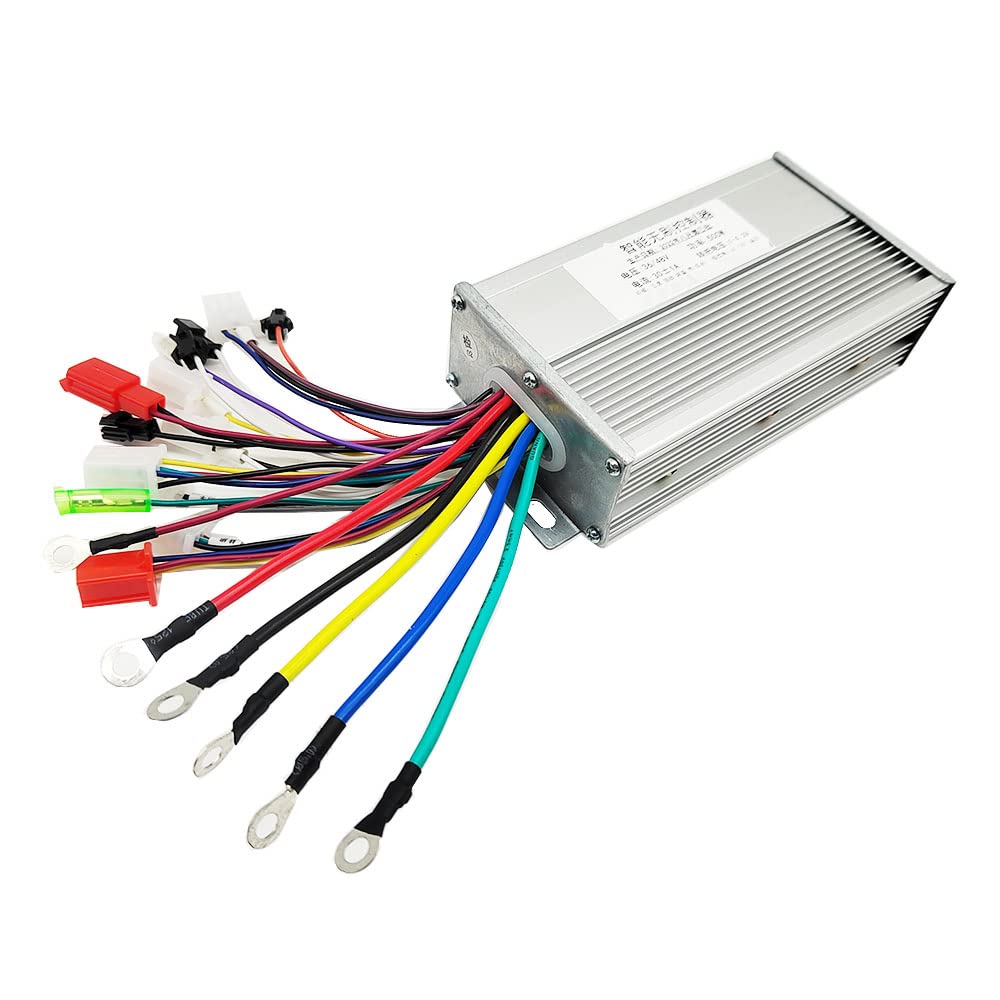

yuandai Electric Bicycle Bike Scooter e-Bike Brushless DC Motor Controller 48V 60V 64V 500W

48-64V 500W controller can work with hall sensor/hall sensorlessRated Voltage: 48V-64VLow Voltage : 42V±0.5VRated Power: 500WLimit Current: 30A48V-64V 500W controller function:1.LCD instrument line2. 3-speed3.cruise4.self-learning5.high brake6.low brake7.alarm power8.alarm signal9.reverse10.throttle11.hall12.key lock（ battery +）13.battery +14.battery -15.motor16.pointer meter linehow to connect controller？1.connect the motor line (color to color）2. connect the battery line(red:battery+ black:battery-)3. connect the controller throttle line key lock（if throttle not have key lock connect controller key lock to battery+，key lock must connect ）4. connect the hall line(if motor without hall line don’t need connect)5.docking the two self-learning lines the wheel will forward or reverse.(1.if wheel forward Separate the self-learning line.2.if wheel reverse Separate the self-learning line. Docking the self-learning line again.if wheel forward Separate the self-learning line.)6.other functions can be connected as needed.
