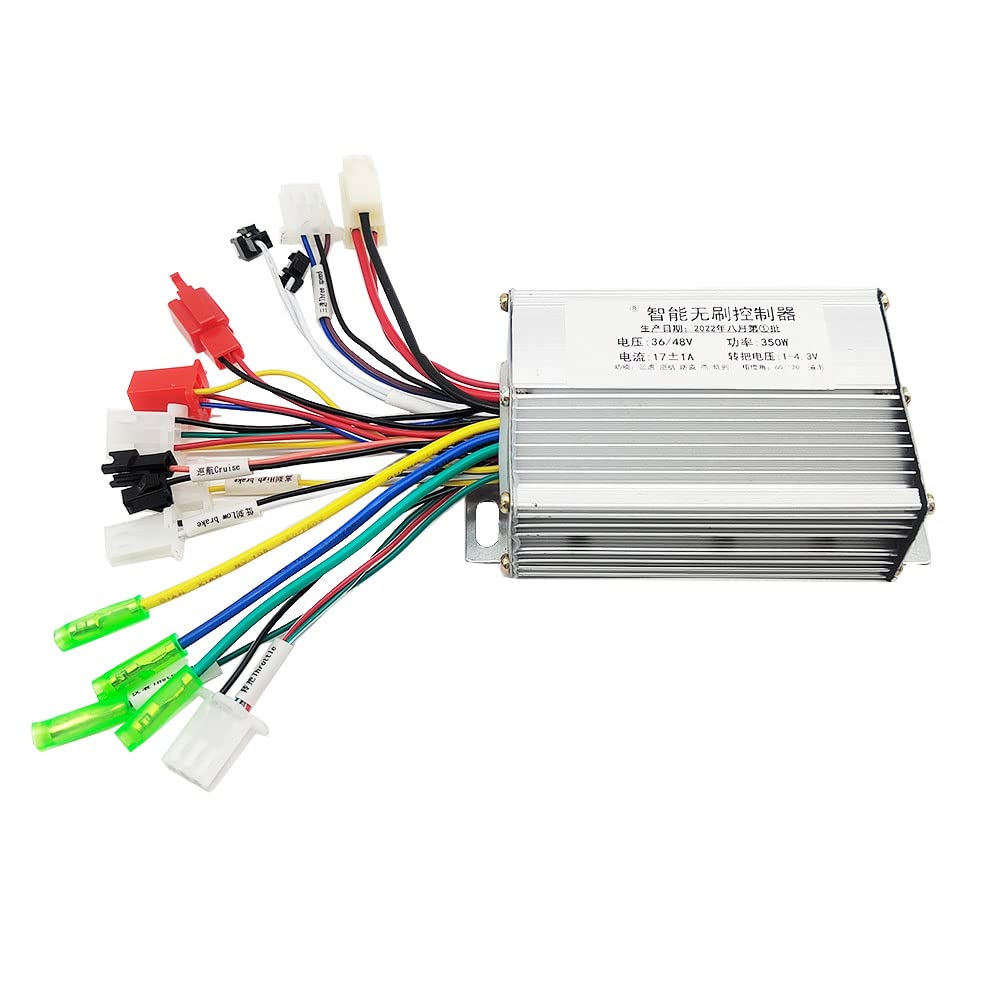

yuandai 36V-48V 350W Brushless DC Motor Controller for Electric Bicycle E-Bike Scooter

The product wiring is complex. If the buyer cannot understand the product details page here please contact us via email and our customer service can help you as much as possible.36V-48V 350W controller can work with hall sensor/hall sensorlessRated Voltage: 36V/48VLow Voltage : 31V/42V±0.5VRated Power: 350WLimit Current: 17A1.pointer meter line2. motor line3.3-speed line4.Anti-theft alarm line5.self-learning line6.hall line7.throttle line8.low brake9.Anti-theft power line10.Cruise speed line11.battery（2 red wires is battery +，black is battery -）12.high brakehow to connect？1.connect the motor line (color to color，must connect）2. connect the battery line(2 red wires is connect to battery + black connect to battery-，these wires must need connect)3. connect the controller throttle line（color to color connect）4. connect the hall line(if motor without hall line don’t need connect)5.docking the two self-learning lines the wheel will forward or reverse.(1.if wheel forward Separate the self-learning line.2.if wheel reverse Separate the self-learning line. Docking the self-learning line again，if wheel forward Separate the self-learning line.)6.other functions can be connected as needed.
