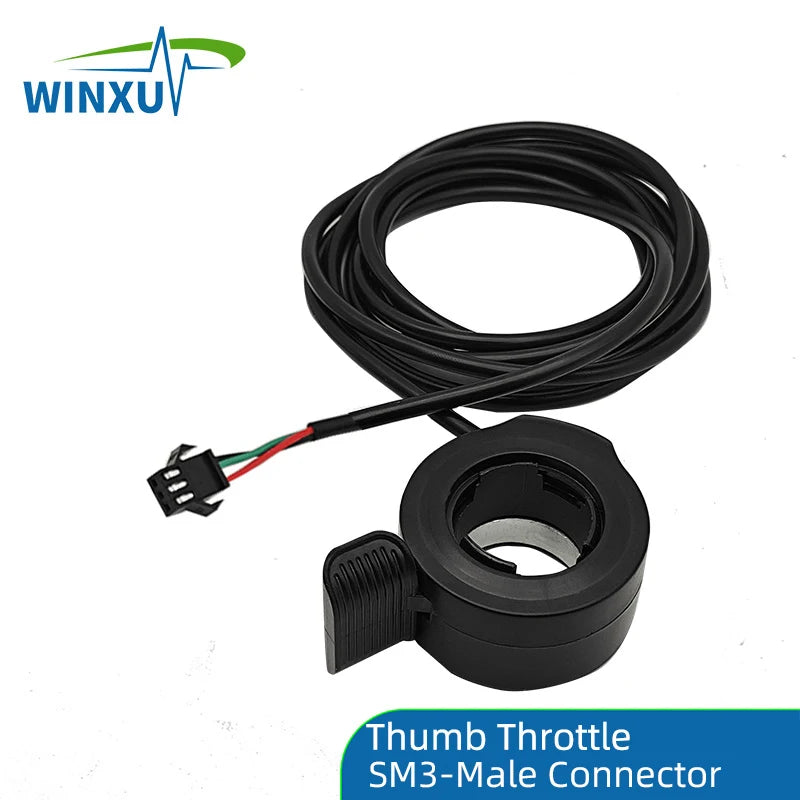

Electric Scooter E-bike Thumb Throttle Left and Right Hand Universal 24-72V Hall Accelerator for Bike Repair Speed Regulator
Electric Scooter E-bike Thumb Throttle Left and Right Hand Universal 24-72V Hall Accelerator for Bike Repair Speed Regulator
Scooter Thumb Throttle Left/Right Universal
Suitable for scooter bike, left and right hand universal, higher compatibility, compatible with all voltage controller

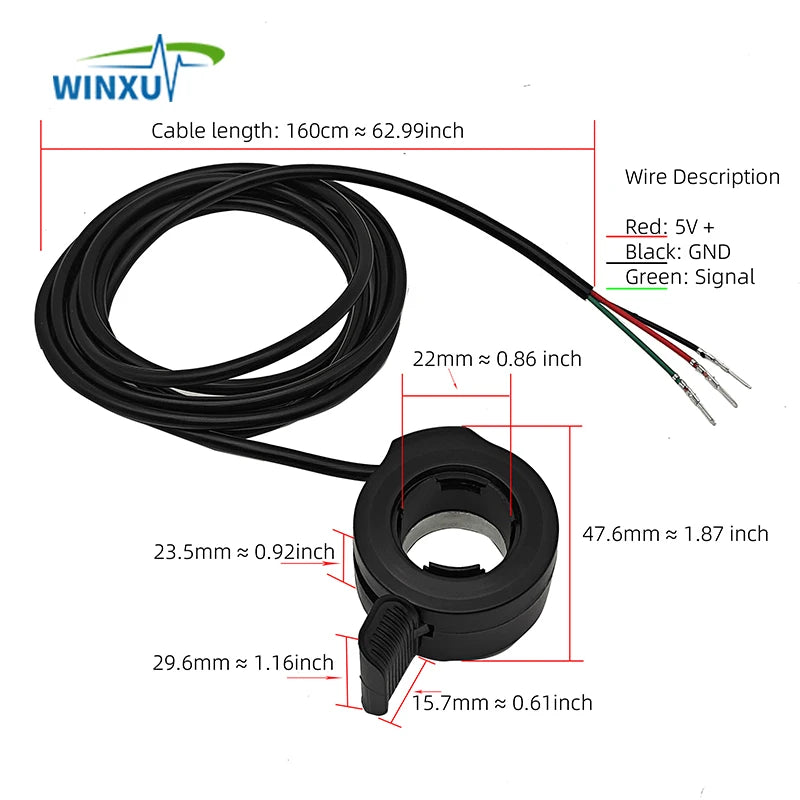

Wire Description:
Red: 5V+ (operating voltage)
Black: GND (negative terminal)
Green:Throttle signal
If your wire ordering is different, you can refer to the above description to change the wire ordering correctly.
On the controller red is 5V+ black is GND, also the signal wires are white, green, blue, brown etc.
The way to differentiate the signal wires is to find the 5V+ and GND wires in priority and the remaining 1 wire is the signal wire.
Special note, please don't connect the battery voltage directly to the throttle wire, the throttle voltage output from the controller is the bucked 5V working voltage.
If you accidentally connect the battery voltage to the trottle wire, then the hall sensor will burn out due to the high voltage, please pay special attention to this.
